3-Bladed Model
Overview
The concept was developed after conceiving of how a jellyfish propells itself through the water. Its evolution has selected the most efficient design for effortless propogation from top to bottom. The invertebrate must achieve efficiency on the upstroke and it must keep from sinking back down on the return stroke.
It is the same with the this turbine - it gets lift when the wind is at an approaching angle and assisting drag when the wind is behind. This has increased the efficiency of our previous model while reducing weight and manufacturing cost. The benefit to wind turbine users is obvious.
Call us today for a Consultation! |
 |
Features
- Low to medium Wind Speed Operation
- Direct Drive Generator
- Silent Operation
- Operation and Maintenance Free
- 5 Year Limited Warranty
Power Generator Description
The VAWT converts wind energy to electrical energy.
The wind pressure (associated with wind speed) on the cage blades cause the cage structure to rotate.
The magnetic field movement across wire-coils produces current flow and an associated voltage.

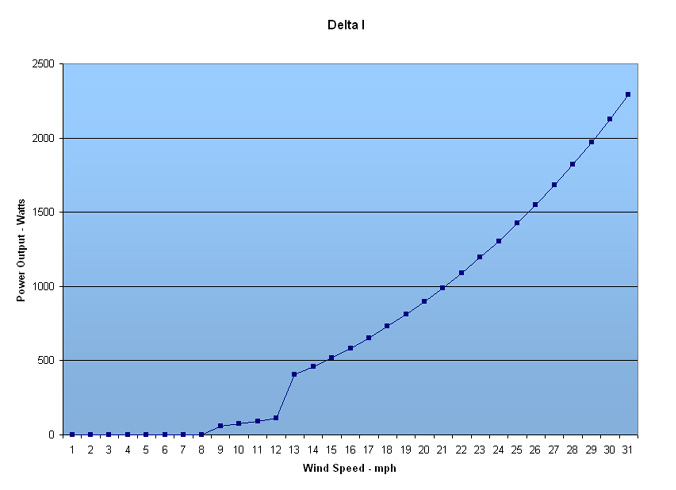

The typical wind-speed to power conversion is shown in the subsequent graph.
Note: wind pressure varies with atmospheric pressure, altitude, and air particulate composition.
Click here to see the analysis of the monthly kWh delivered by the 3-Bladed Turbine.
Electrical Specifications
Power Interface:
Electrical Connection 2 Wire
D.C. Output Voltage 0-190 Volts Peak
D.C. Output Current 0-20 Amps Peak
Wire Type 10 AWG
Electromagnetic Containment FCC Class B
Controller:
Controller Type: MorningStar TriStar-60
Data interface: RS-232
Connector Socket P/N: DB-9 (F)
Physical Specifications:
Cage Height: 48 inches
Cage Diameter: 79 inches
Cage Weight: 47 pounds
Cage Rotation Speed: 0 to 600 RPM Peak
Generator Height: 5.75 inches
Generator Diameter: 18.5 inches
Generator Weight: 79 pounds
Sound (Noise) Pressure Level: 4.5 dB (at 5ft)
Hazardous Materials: RoHS Compliant
(Note: To enhance or improve the product, the specifications are subject to change without notice)
5-KW Model
Overview
The Vertical Axis Wind Turbine (VAWT) converts wind energy to electrical power.
The VAWT is an omni-directional low wind-speed generator that may be easily installed practically anywhere with good wind exposure.
The VAWT is seen as a solid object as the rotational speed increases, making it visible to birds.
The VAWT has a 3-phase A.C electrical power connection and 3-phase rectifier.
The system includes a 80 Amp Load Diversion Controller.
Features
- Moderate Wind Speed Operation
- Direct Drive Generator
- Silent Operation
- Operation and Maintenance Free
- 5 Year Limited Warranty
Power Generator Description
The VAWT converts wind energy to electrical energy.
The wind pressure (associated with wind speed) on the cage blades cause the cage structure to rotate.
The magnetic field movement across wire-coils produces current flow and an associated voltage.

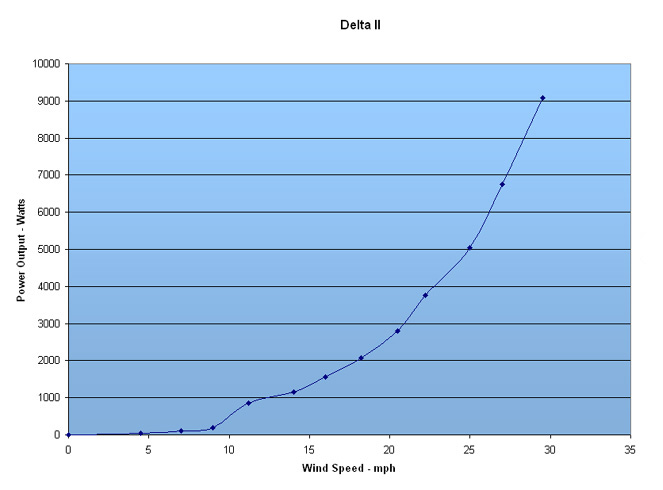

The typical wind-speed to power conversion is shown in the subsequent graph.
Note: wind pressure varies with atmospheric pressure, altitude, and air particulate composition.
Electrical Specifications
Power Interface:
Electrical Connection 2 Wire
D.C. Output Voltage 0-120 Volts Peak
D.C. Output Current 0-80 Amps Peak
Wire Type 10 AWG
Electromagnetic Containment FCC Class B
Controller:
Controller Type: Apollo T-80
Data interface RS-232
Connector Socket P/N DB-9 (F)
Physical Specifications:
Cage Height 120 inches
Cage Diameter 96 inches
Cage Weight 200 pounds
Cage Rotation Speed 0 to 500 RPM Peak
Generator Height 14.5 inches
Generator Diameter 33.5 inches
Generator Weight 300 pounds
Sound (Noise) Pressure Level 15 dB (at 5ft)
Hazardous Materials RoHS Compliant
Environment
Operating Temperature -20 to 120° F
Storage Temperature -30 to 140° F
Relative Humidity 0 to 95% NC
